PP Needle Punched Geotextile Fabric: Where Does Polypropylene Make a Practical Difference?

PP Needle Punched Geotextile Fabric combines polypropylene fibers with a mechanically bonded needle-punched structure to create a porous, flexible geotextile for separation, filtration, drainage, and protection applications. Unlike a waterproof sheet, the fabric is designed to remain permeable so that water can pass through while different soil and aggregate layers remain better controlled.

The choice of polypropylene is important because the fiber itself influences how the finished geotextile behaves around moisture, soil, chemicals, installation stress, and long-term underground exposure. Understanding these material characteristics is more useful than looking only at fabric weight or thickness.

PP Needle Punched Geotextile Fabric Does Not Depend on Water Absorption to Work

Geotextiles are frequently installed in environments where moisture is unavoidable. Drainage trenches, road bases, landscaped ground, retaining structures, and wet subgrades may remain damp for long periods or experience repeated wet-dry cycles.

Polypropylene has very low moisture absorption. This means the fibers do not need to absorb water in order for the geotextile to perform its filtration or separation function. Water instead moves through the void structure formed between the fibers.

For PP Needle Punched Geotextile Fabric, this distinction is important. The fabric can remain permeable while the fiber structure continues to provide a physical boundary between soil and the material above it.

In drainage-related applications, the relevant question is therefore not whether the fabric absorbs water, but whether its pore structure provides a suitable balance between water transmission and soil retention.

The Needle-Punched Structure Creates a Three-Dimensional Filtration Layer

PP fibers alone do not determine geotextile performance. The way those fibers are formed into a nonwoven structure is equally important.

During needle punching, fibers are mechanically entangled into a three-dimensional web rather than being woven into regular intersecting yarns. The resulting structure is flexible and contains interconnected voids through which water can move.

This structure can be useful where the geotextile must perform more than one function at the same time. For example, a buried layer may need to maintain soil separation while also allowing moisture to pass through. In another application, it may need enough thickness and flexibility to protect another material from an irregular surface.

The needle-punched structure therefore gives PP geotextile a combination of:

• permeability for water movement;
• flexibility for irregular ground surfaces;
• mechanical continuity across the covered area;
• filtration capability at the soil interface;
• cushioning where protection is also required.

These functions come from the complete fiber network rather than from a single specification.

Why Polypropylene Is Useful in Contact With Soil and Moisture

Underground geotextiles can remain in contact with soil water and dissolved substances for long periods. This makes fiber stability an important consideration.

Polypropylene is generally resistant to many chemicals commonly encountered in soil and water environments. This characteristic makes it suitable for a wide range of buried applications where the geotextile may remain continuously exposed to moisture.

However, chemical resistance should not be interpreted as universal resistance to every possible substance. Industrial chemicals, unusual temperatures, or specialized environments still require application-specific evaluation.

For normal ground separation, filtration, landscape, and drainage conditions, PP provides a practical fiber base for producing nonwoven geotextile structures that are intended for long-term burial.

Lightweight Fiber Does Not Mean the Finished Fabric Has to Be Weak

Polypropylene has a relatively low density compared with many other synthetic materials. This can help create geotextile products that are practical to roll, transport, unfold, and position across large installation areas.

At the same time, finished performance depends heavily on fiber quantity, web structure, needle-punch density, and overall manufacturing quality.

This is why two PP Needle Punched Geotextile Fabric products with similar appearance may still behave differently under installation stress.

For projects exposed to crushed stone, repeated traffic, or rough subgrade, relevant mechanical properties may include tensile strength, puncture resistance, and resistance to installation damage. A lighter-feeling material should therefore never be evaluated only by touch.

The more useful question is whether the complete product structure provides enough mechanical performance for the intended ground condition.

PP Geotextile Has Different Priorities in Separation and Filtration

The same PP needle-punched material can be used in different ways, but the most important performance characteristics change with the function.

When the fabric is primarily used for separation, the goal is to reduce mixing between materials such as soft soil and aggregate. Mechanical continuity, puncture resistance, and the ability to remain intact during covering become important.

When the main purpose is filtration, the fabric must allow water to move through while helping control soil-particle migration. Permeability and pore structure therefore receive greater attention.

When the product is used as a protective layer, thickness, cushioning behavior, and resistance to localized pressure may become more relevant.

This functional difference explains why choosing PP geotextile only according to GSM can be misleading. The same fabric weight does not automatically provide the same filtration, mechanical, or protective performance.

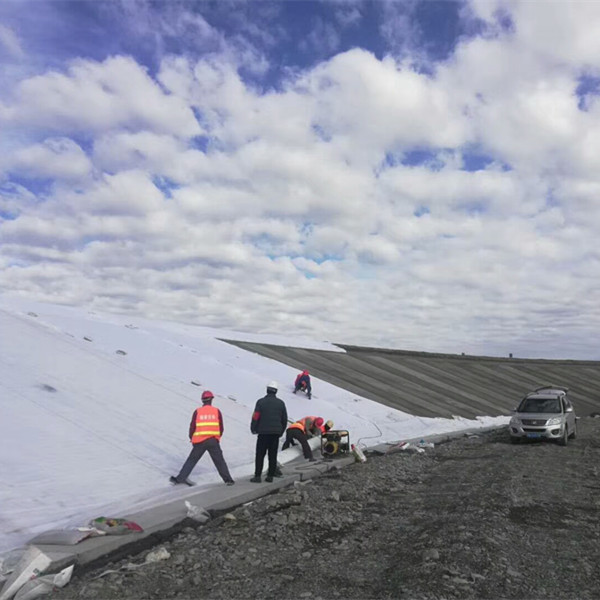

What Should Be Considered Before PP Geotextile Is Covered?

Once geotextile is buried under soil or aggregate, inspection becomes difficult. The condition of the material during installation is therefore important.

The installation surface should be free from unnecessary sharp debris that could damage the fabric before it is covered. Adjacent sections also need sufficient continuity so that soil and aggregate do not come into direct contact through large gaps.

Where coarse aggregate is placed above the geotextile, the covering process should avoid unnecessary dragging or concentrated impact. In large areas, suitable roll dimensions can reduce the number of joints and make continuous placement easier.

These installation details are particularly relevant because the geotextile is expected to continue working after it is no longer visible.

Where Do the Main Performance Priorities Change?

Rather than using one PP geotextile specification for every situation, it is more practical to connect the site condition with the main function required from the fabric.

This approach makes PP Needle Punched Geotextile Fabric easier to evaluate because the product is considered according to what it needs to accomplish rather than by one isolated number.

UV Exposure Matters Before the Fabric Is Buried

One detail that is sometimes overlooked is the period between delivery, installation, and final covering.

PP geotextile is primarily intended to work as a buried functional layer. Extended unnecessary exposure to sunlight before covering should therefore be avoided. Good site handling includes storing the material appropriately and covering installed sections within a reasonable construction schedule.

This is different from outdoor fabrics specifically designed to remain exposed for long periods. A geotextile buried below soil or aggregate faces a different service environment, so handling before burial should reflect its intended use.

Vinner PP Needle Punched Geotextile Fabric

Vinner provides PP Needle Punched Geotextile Fabric for separation, filtration, drainage, landscape construction, ground applications, and protective layers.

Different configurations can be matched through fabric weight, thickness, roll width, roll length, and other application-related requirements. Where the fabric is placed below aggregate, greater attention can be given to mechanical and puncture performance. For filtration and drainage applications, permeability and soil-retention behavior become more important.

For larger installation areas, suitable roll dimensions can also reduce unnecessary joints and improve coverage continuity.

FAQ

What is PP Needle Punched Geotextile Fabric used for?

It can be used for soil separation, filtration, drainage support, landscape construction, aggregate bases, and protective layers where a permeable nonwoven geotextile is required.

Does PP geotextile absorb water?

Polypropylene fibers have very low moisture absorption. Water primarily moves through the pore structure of the needle-punched fabric rather than being absorbed into the fibers.

Is higher GSM always better for PP Needle Punched Geotextile Fabric?

No. GSM is only one specification. Tensile strength, puncture resistance, permeability, pore structure, thickness, and the intended function should also be considered.

Can PP Needle Punched Geotextile Fabric be used under gravel?

Yes, when the fabric structure and mechanical properties are suitable for the subgrade, aggregate, loading, and separation requirements of the project.
